SOLAR APPLICATION:
Electronic protection and control panels with inverter for “off-grid” photovoltaic systems for use in several types of pumping systems, from collection from the subsoil, to circulation, swimming pool filtering, transfer and accumulation of water.
FEATURES:

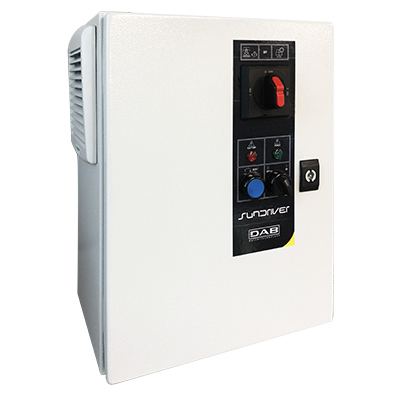

SUNDRIVER is designed to be powered mainly by solar energy. However, in case of need, powering from the electricity network or from a generator is also possible, using a manual selector switch, therefore also ensuring operation when solar energy is not available.
TECHNICAL DATA:
Nominal power input voltage: VDC 420 V VAC 300 V
- Frequency: 50 Hz
- Maximum power of use: 0.37-3 kWatt 0.5-4 Hp
Pump operating range:
- 230 V pump power input
- PUMP ON = above 290 Vdc / 206 Vac
- PUMP OFF = below 190 Vdc / 135 Vac
- 115 V pump power input
- pump on = above 140 Vdc / 100 Vac
- pump off = below 110 Vdc / 180 Vac
Ambient temperature operation limits: + 50° C
Protection class: IP 54
